Emergency Release Dense Gas Model

KEY FEATURES

The SLAB model was developed in the 1980's by Lawrence Livermore National Laboratory (LLNL), with financial support from the Department of Energy (DOE). The SLAB model is currently distributed by the US EPA

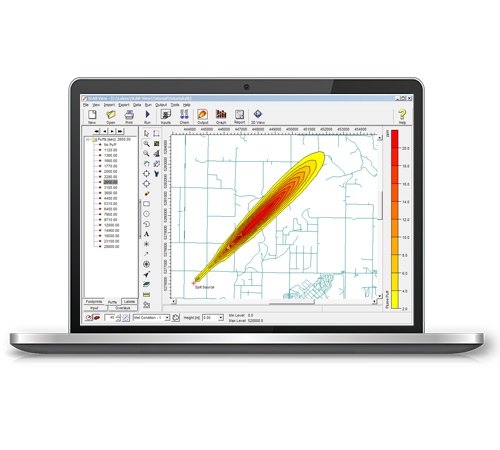

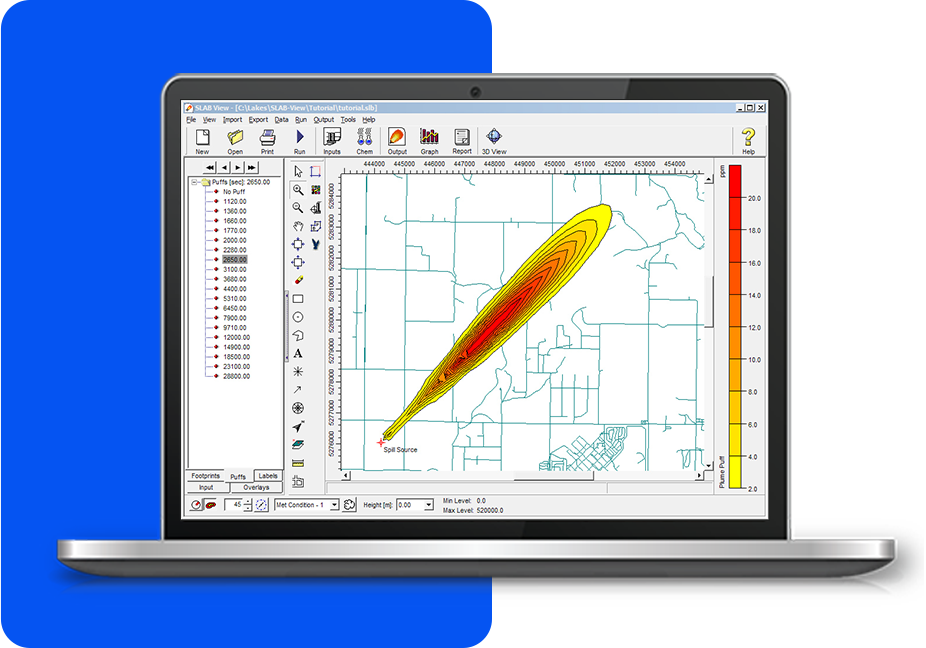

INTEGRATED GRAPHICAL USER INTERFACE

Fully integrated interface combining easy to use graphical tools, seamless model run, and automated contouring and posting of results.

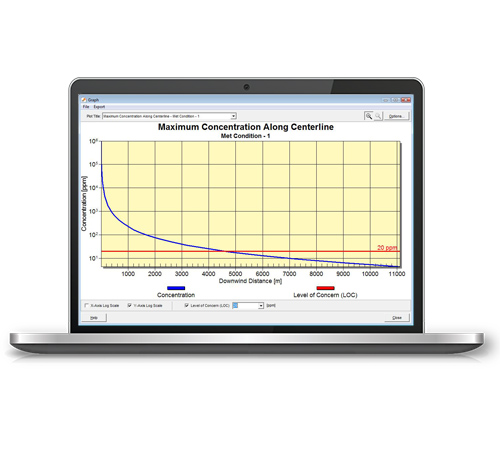

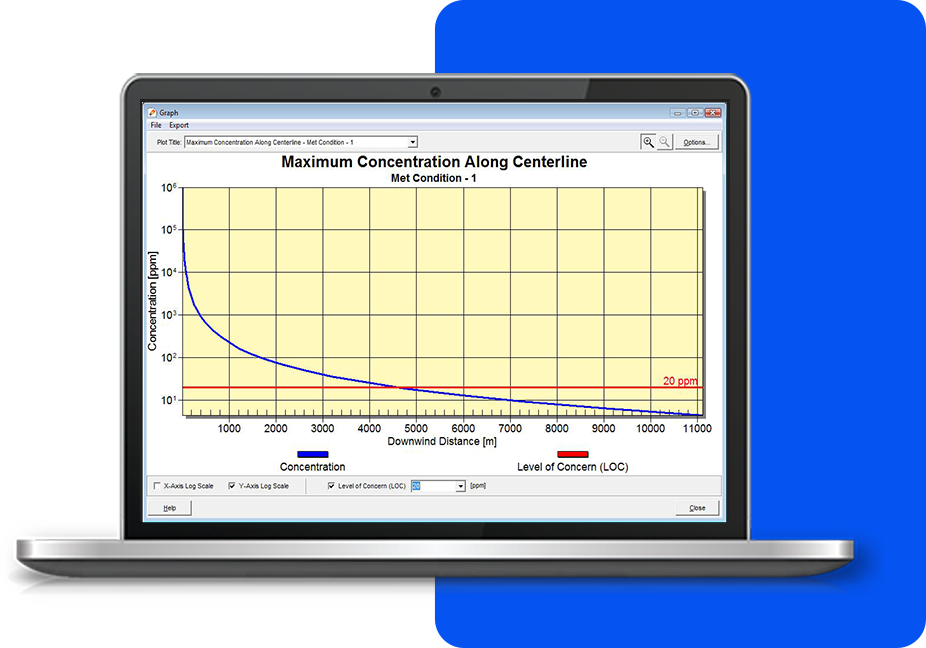

MAXIMUM CONCENTRATION GRAPHS

SLAB View automatically generates graphs displaying the Maximum Concentration Along the Centerline for all the meteorological conditions being modeled. You can specify the Level of Concern (LOC) for the chemical being modeled to be shown in the graph (indicated in this image as a red line).

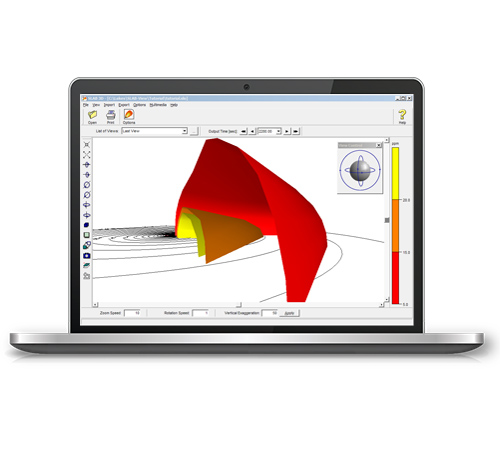

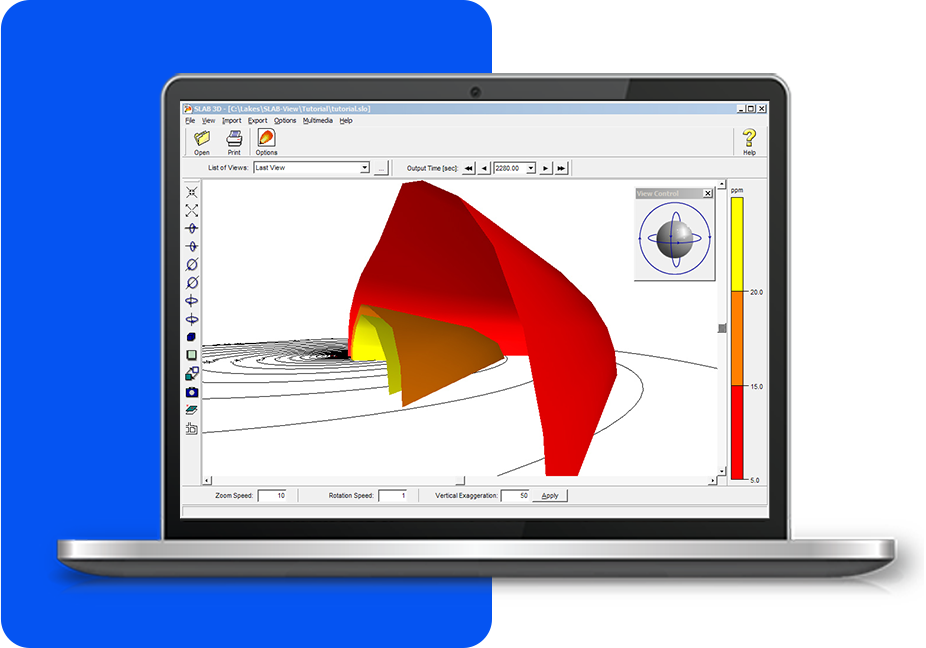

3D VISUALIZATION

Watch the plume disperse in three dimensions using the 3D View option. Understanding how a release spreads has never been easier. SLAB 3D allows you to create animations of plume migration that can be incorporated into most presentation packages.

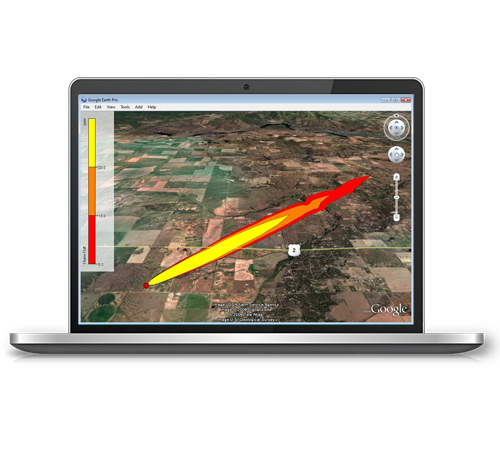

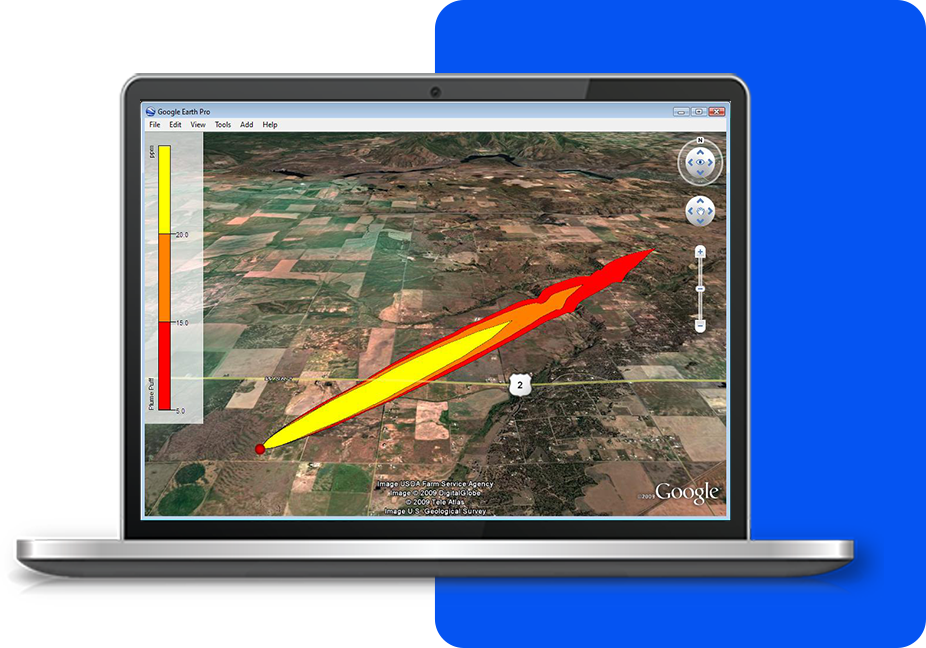

EXPORT TO GOOGLE EARTH

This exciting feature allows you to export the footprint and or puff of the source spill into Google Earth giving you a more realistic image of where the spill will impact surrounding areas.

ADDITIONAL FEATURES


There is more to SLAB View than great looks. Each copy contains everything you'll need to complete your project without paying for costly add-ons.

Support for Several Base Map Formats

SLAB View has support for a variety of image and base map formats allowing you to setup your model with confidence and easy visualization and identification of the location of your spill area. Supported base maps include: Bitmap, DLG, DXF, JPEG, LULC, MrSID, Shapefile, and TIFF/GeoTIFF.

Graphical and Output Options


SLAB View provides you with full control of the appearance of your footprints and puffs. You can specify the footprint levels (ppm) to be displayed, which colors to use, line thickness, and much more.


Extensive Chemical Database

SLAB View has an extensive database of chemicals that can be modeled, including their properties. User defined chemicals can also be added.

Multiple Release Types

SLAB View models several different release types such as horizontal and vertical jet, evaporation pool, and instantaneous or short duration evaporation pool.
